GLDA-Na4 in Laundry Detergents: Formulation and Performance

Hard water quietly costs a detergent its performance. Every calcium and magnesium ion in the wash liquor takes a share of the surfactant out of play, leaves mineral residue on fabric, and speeds up the breakdown of peroxide bleach. Tetrasodium glutamate diacetate — GLDA-Na4, CAS 51981-21-6 — is a readily biodegradable chelating agent that binds those ions and holds them in solution, so that liquid and powder laundry formulations can deliver the performance they were designed for across a range of water hardness. It keeps its chelation across roughly pH 2 to 13, and it degrades well above 60% within 28 days under OECD 301 testing.

This article sets out where GLDA-Na4 fits in laundry formulations, what it does to detergency, enzyme behaviour and bleach stability, and how to approach dosing without over- or under-building the system.

Why hard water undermines a detergent

The problem starts before the wash cycle does. Anionic surfactants — linear alkylbenzene sulphonate, alcohol ethoxysulphates, soap — react with calcium and magnesium to form insoluble salts. What was meant to lift soil ends up as scum, and the effective surfactant concentration drops.

Three consequences follow, and they are the ones formulators actually measure:

• Detergency falls. Less surfactant remains available to emulsify and suspend soil.

• Inorganic deposition rises. Calcium carbonate and phosphate salts settle onto fabric, which shows up as greying and a harsher handle, particularly on cotton.

• Bleach decomposes faster. Trace copper, iron and manganese catalyse the breakdown of hydrogen peroxide and percarbonate, wasting the bleaching agent and, at worst, damaging the fabric.

A chelating agent addresses all three by sequestering the metal ions before they can interfere.

What GLDA-Na4 does in the wash liquor

GLDA-Na4 is a multidentate ligand: three carboxylate groups and a tertiary amine on a glutamate backbone give it strong affinity for divalent and trivalent metals. Measured on a dry basis, its sequestering capacity runs roughly as follows.

Metal ion	Sequestration (mg/g, dry basis)
Ca²⁺	45
Cu²⁺	72
Zn²⁺	73
Fe²⁺	63
Mg²⁺	27
Mn²⁺	62

Those figures explain the split in behaviour. Calcium capacity is solid rather than exceptional, whereas the copper, zinc and iron numbers are where GLDA-Na4 does its most distinctive work — and it is the transition metals that drive bleach decomposition and colour fading.

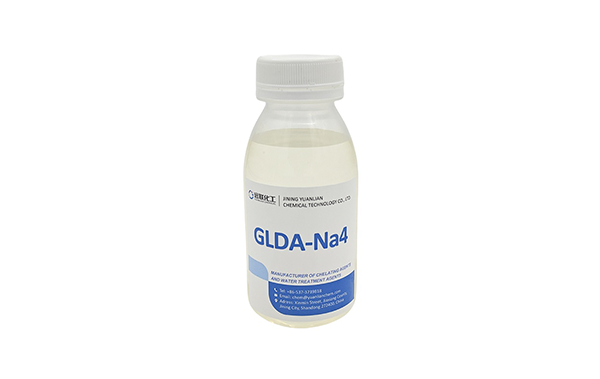

For detergency it is supplied most often as a clear aqueous solution at around 47% active, with a pH near 11–12 at 1% dilution and a density of roughly 1.4 g/cm³. It mixes freely with water and stays stable in the concentrated surfactant systems used for compact liquids and unit-dose formats.

Liquid laundry detergents

Liquids are where the solubility profile matters most. A concentrated liquid detergent can run to 50–60% active matter, and any chelator that crystallises or phases out at that concentration becomes a problem. GLDA-Na4 stays clear and stable in these systems, which is why it appears in compact liquids and in the liquid compartments of unit-dose pods.

It also holds its performance at the alkaline pH of a typical heavy-duty liquid, and it does not drop out in the way some chelators do when the builder load is high.

Enzyme compatibility

This is the point that deserves care rather than optimism. Proteases and amylases are proteins, and some of them — amylases in particular — rely on bound calcium for structural stability. A strong chelator can strip that calcium and shorten the enzyme's working life.

The practical guidance is unglamorous: check with the enzyme supplier, and if stability looks marginal, look at the enzyme grade before abandoning the chelator. In many commercial systems the two coexist without difficulty, but it remains a formulation variable rather than a given.

Bleach stability

Where the detergent carries peroxide or percarbonate, GLDA-Na4 helps by locking up the iron, copper and manganese that would otherwise catalyse decomposition. The benefit shows up as more of the bleaching agent surviving into the wash, which is what protects whiteness over repeated cycles.

Powder and unit-dose formats

Powder detergents have historically leaned on zeolites and polycarboxylates, with phosphates now restricted in consumer laundry products across the EU. Zeolites work, but they are insoluble ion exchangers: they cannot be used in liquids, and they contribute to the insoluble residue that settles on fabric and inside the machine.

GLDA-Na4 is soluble, so it can be carried on a powder base or incorporated into the liquid phases of a granulation process. For unit-dose products, where the formulation volume is small and every gram has to work, that solubility advantage matters more — there is no room for a builder that does not fully dissolve in the wash.

Dosing guidance

Dose follows water hardness and the surfactant system, not a fixed rule. The table below gives working ranges for a standard 47% active grade. The right figure for a given formulation comes out of a wash test on real water.

Application	GLDA-Na4 (as supplied) in concentrate	Notes
Standard liquid laundry detergent	0.5–2%	Adjust with hardness
Compact or concentrated liquid	2–5%	Higher active matter
Heavy-duty powder	1–3%	Alongside zeolite or polycarboxylate
Stain remover / pre-treatment	2–6%	Contact time does much of the work
Booster or additive	3–8%	Sold on performance rather than price

Water hardness drives the number more than anything else. A formulation aimed at a soft-water market can sit at the bottom of these ranges; one aimed at the harder water of parts of southern and eastern Europe needs to be built for the top.

Regulatory position

For European laundry products the relevant framework is the EU Detergents Regulation (EC) No 648/2004, as amended, which limits phosphorus in consumer laundry detergents. GLDA-Na4 contains no phosphorus, is registered under REACH, and is readily biodegradable under OECD 301 screening — typically above 60% in 28 days. It is accepted within EU Ecolabel and Nordic Swan criteria, which matters for brands making certified environmental claims.

Being realistic about what that does and does not solve: ready biodegradability addresses persistence in the environment. It does not by itself settle the aquatic toxicity question, and any environmental claim still has to be checked against the current version of the criteria for the specific product category.

Practical notes from the formulation bench

A few things worth knowing before committing to a full reformulation:

• Order of addition. In liquids, adding the chelator before the surfactant generally gives a clearer and more stable system.

• pH drift. The 47% grade is strongly alkaline. Check the final pH after inclusion rather than assuming it holds.

• Hardness testing. Validate against the hardest water in the target market, not the average.

• Storage. Ambient temperature in HDPE or stainless is fine; protect from frost and avoid prolonged storage above 40 °C.

Frequently asked questions

Is GLDA-Na4 a drop-in replacement for phosphates in laundry?

It replaces the sequestration function, not the full builder package. Phosphates also contributed alkalinity and soil dispersion, so expect to adjust the rest of the system.

How does it compare with MGDA-Na3 in laundry liquids?

Both work. MGDA-Na3 is generally regarded as marginally stronger on hardness ions per unit weight, while GLDA-Na4 offers high solubility in concentrated systems and a useful transition-metal profile. A wash test on your own formulation settles it faster than a comparison table.

Will it damage enzymes?

It can, with certain amylases. Confirm with the enzyme supplier and consider enzyme grade if stability looks marginal.

Can it be used in concentrated unit-dose liquids?

Yes — its miscibility with water and stability at high active matter suit that format well.

Conclusion

GLDA-Na4 earns its place in laundry formulations by doing three jobs at once: protecting the surfactant from hardness ions, stabilising bleach against transition metals, and staying soluble in the concentrated systems that modern formats demand. It does that while meeting the biodegradability criteria that European ecolabels and the Detergents Regulation push towards.

The caveat worth repeating is that dose and enzyme compatibility are formulation-specific. A wash trial on the target water hardness is faster and more reliable than extrapolating from a data sheet — and most technical suppliers will support that with evaluation samples and wash-test data.
